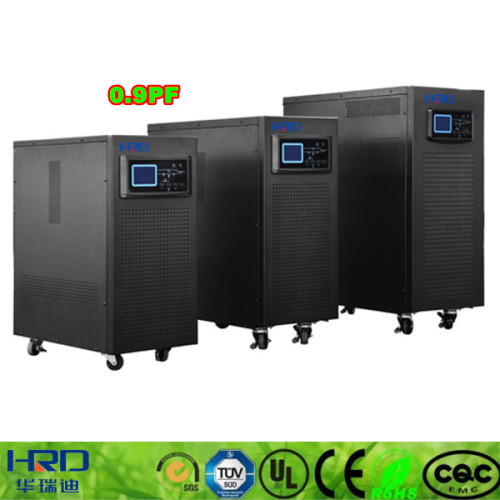

6-20Kva single phase online ups power supply system with pure sine wave output

1.Application for the single phase online ups:

Internet servor,middle data center,net work system,bank and securities,medium-scale office automation,precision equipment,etc.

2.Features for the single phase online ups:

1. DSP control, with excellent performance and comprehensive protections for load and UPS

2. Output power factor 0.9, offering more stronger load capability

3. Intelligent fan speed control, with 4 levels varying according to load and temperature

4. Wide input range, support kinds of generator

5. Dual input AC source supportable

6. EPO (emergency power off)

7. Event log up to 100 events, recording UPS running time and critical memories

8. High efficiency (ECO mode) option

9. Intelligent N+X parallel redundancy, up to 6units

10. AC and cold start function

11. Human friendly large LCD, with plenty operation information

12. Conformal coating PCB for more critical operation environment

13. 3:1phase into single phase easy convertible (10-20Kva)

14. Frequency Convertor mode: input 50Hz, output 60Hz or reverse

15. Most advanced 3 electrical level inverter design for 15-20kva

16. Extremely low failure rate and easy repair(MTBF>80000h,MTBR<0.5h)

17.Intelligent 10A charger,prolong battery lifespan by above 20%: interval three-stage charging process

( constant current. constant voltage, float charging) with inverse battery connection protection(option)

3.About us:

Shenzhen HRD Science & Technology Co., Ltd. is a large high professional UPS manufacturer,with ISO 9001:2008 and ISO 14001:2004 certified.

Based on the most advanced and the stalest technique guarantee system, HRD provides the following products and custom made product  for global customer.

1)UPS power supply ( uninterrupted power supply)600va-600Kva

2)Inverter(electricity,solar etc.system)1-200Kva

3)EPS(emergency power supply)10-200Kva

4)Lead-acid maintenance-free battery

With the same diligent customer-oriented spirit, HRD is dedicated to continuously designing, manufacturing, marketing and introducing a complete line of UPS,

inverters and power products to the demanding power market.

With 2 large  manufacture  base and strict quality traceable syste, HRD makes sure to deliver high quality goods on time for our global customer.

So far, our good quality power product are exporting to more than 60 countries all over the world, stragety partners including world-famous UPS brand...

We sincerely and warmly welcome you to visit us and cooperate with us!

4.Our service:

A. Reply your inquiry within 24 hours.

B. Experienced staff answer all your questions in fluent English.

C. Customized design is available.OEM&ODM are welcomed.

D. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers  and staff.

E. Special discount and protection of sales area provided to our distributor.

5.FAQ:

1.What is uninterrupted power supply

An uninterruptible power supply, also uninterruptible power source, UPS, is an electrical apparatus that provides emergency power to a load when the input power source, typically mains power, fails. A UPS differs from an auxiliary or emergency power system or standby generator in that it will provide near-instantaneous protection from input power interruptions, by supplying energy stored in batteries, super capacitors, or flywheels.

2.What is the difference between high frequency ups machine  and low frequency ups machine ?

Item	High   frequency ups machine	Low   frequency ups machine
Input PF	0.99	0.7
Efficiency	85-90%	75-85%
Power density	Higher	Lower
Power device capacity	Less	More
Weight	Light	Heavy
Dimension	Compact	Bigger
Price	Lower	Higher
Overload ability	Normal	Better
Anti input sugar capacity	Normal	Better
Output anti-crush , short circuit capacity	Normal	Better
N-G voltage	Bad	Better
Output component	More	Less
Damage extent of device when it's fail	Higher	Lower
Stability	Normal	Better
Compatibility with   generator	Bad	Better




3. How to choose between standard model UPS and long time model UPS?

Standard   Model  ups machine	Long-run Model ups machine
Standard  model UPS power means within batteries inside UPS, the backup time would be only few minutes at full load	Long-run model UPS power means with external batteries, the backup time would be different according to the battery capacity
If the  backup time at full load is longer, long time model would be your choice , if the backup time at full load is shorter, standard model UPS would be enough




4.Does the ups machine  work in my country?

YES, we provide different socket and plug according to different country, also will produce the ups voltage and frequency based on your special need.
